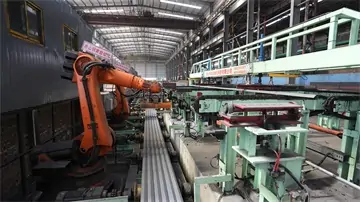

Steel Palletizing Robot

Product Introduction

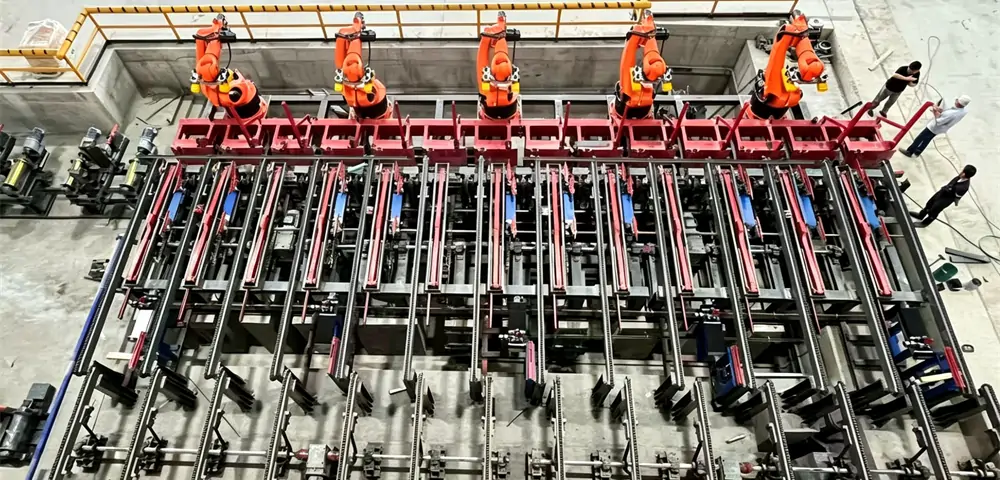

This full-automatic steel palletizing robot system is professionally designed for the rear-end finishing process of section steel rolling mills. Adopting German KUKA heavy-duty industrial robots combined with electromagnetic adaptive grabbing technology, the equipment realizes fully automatic steel alignment, splitting, conveying, flipping, layered stacking and outbound transportation.

The whole production process is controlled by Siemens PLC system with unmanned operation. It effectively solves the problems of low efficiency, messy stacking, high labor cost and poor safety of traditional manual stacking. This high-speed, high-precision intelligent palletizing solution is widely matched with steel rolling production lines and is the core automation equipment for upgrading medium and small steel mills.

Features

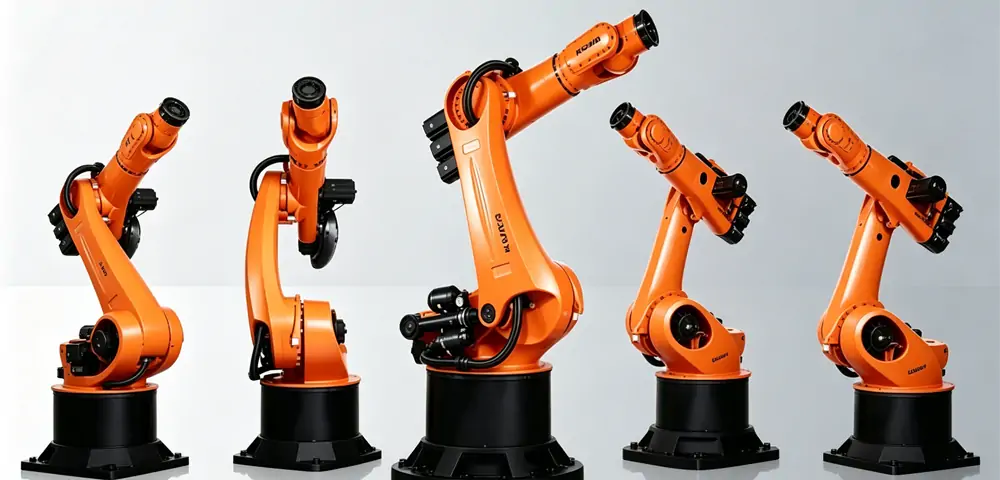

•German KUKA Heavy-Duty Robot Core, Stable Performance

Equipped with 4 sets of refurbished KUKA KR360-2 heavy-load robots, with stable heavy-load operation performance, strong impact resistance and long service life. The 98% new robot unit greatly reduces customer investment cost while retaining industrial-grade operating stability.

•Electromagnetic Adaptive Grabbing, Strong Adaptability

Adopts dual parallel electromagnetic groups with self-adaptive magnetic field intensity control. It can grab single or double layers of angle steel forward and reverse simultaneously, realizing flexible grabbing and stacking of different section steel specifications without manual mechanical adjustment.

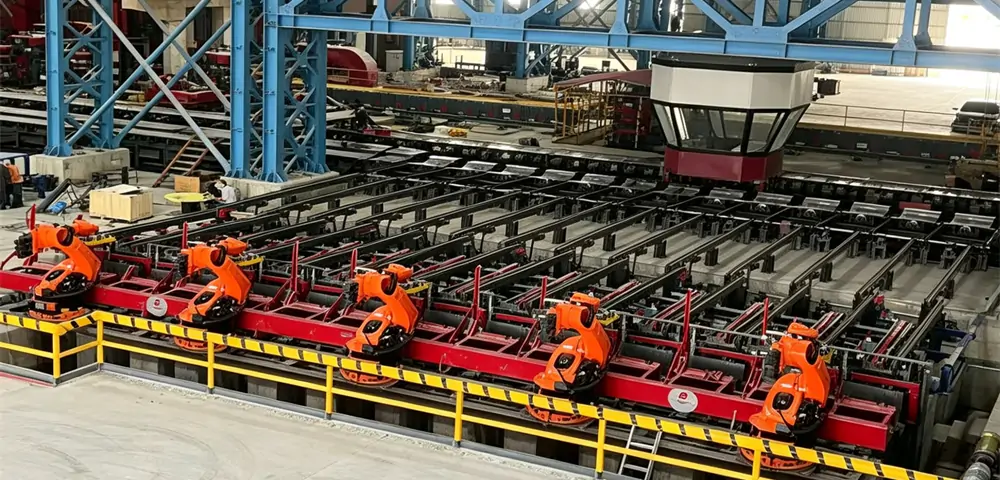

•Ultra-Fast Palletizing Beat & High Efficiency

The whole line adopts servo automatic steel splitting + robot synchronous palletizing mode, with palletizing cycle ≤10 seconds. The continuous operation efficiency is far higher than manual work, fully matching the high-speed output rhythm of the front-end rolling mill.

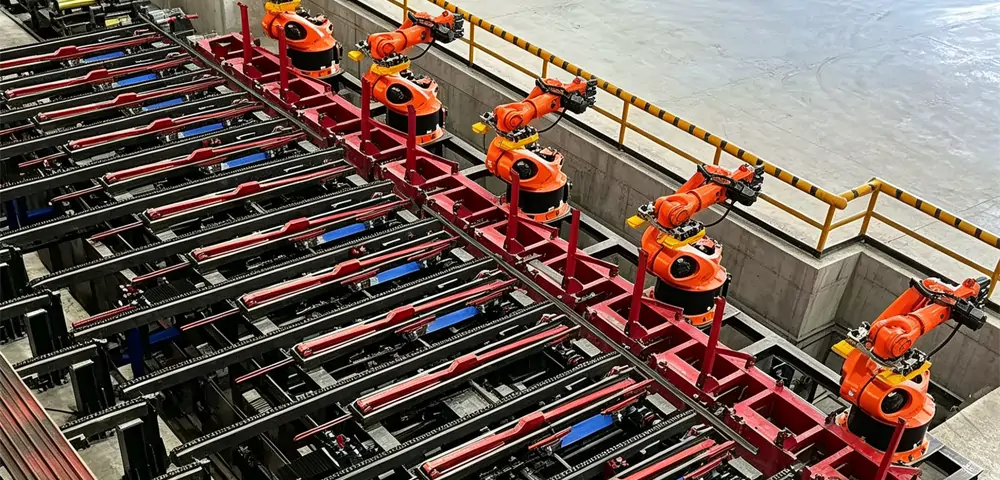

•Full PLC Intelligent Unmanned Operation

Supported by Siemens PLC system and HMI touch screen parameter adjustment. The steel splitting positioning, layer quantity control, positive and negative flipping, fixed-layer stacking and automatic outbound are all completed automatically. No manual intervention is required during operation, saving labor costs greatly.

•High Precision Alignment & Neat Stacking

Equipped with 3-position pneumatic lower steel baffle and photoelectric sensing positioning system. The section steel is automatically aligned and positioned, with regular stacking shape, uniform force of each layer, no messy steel or irregular bundling, which improves the appearance quality and market competitiveness of finished steel bundles.

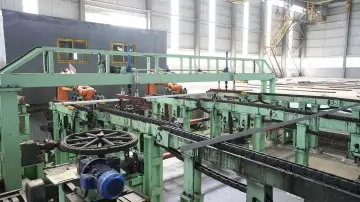

•Complete Supporting System & Low Failure Rate

Matched with professional conveying chain, forming splitting mechanism, pneumatic system and independent electrical control cabinet. The whole set of equipment has reasonable structural design, stable transmission, low daily maintenance cost and 24-hour continuous industrial operation capability.

•Wide Applicable Length Range

Support palletizing of various section steel lengths from 6m to 12m, covering all conventional building steel specifications, suitable for most section steel rolling mill production lines.

Product Parameters

Parameter Item	Technical Specification
Matching Robot Model	KUKA KR360-2 (98% new)
Robot Quantity	4 sets
Palletizing Beat	≤10s per cycle
Applicable Steel Length	6m / 7m / 8m / 9m / 10m / 11m / 12m
Grabbing Method	Adaptive electromagnetic absorption (double-layer forward & reverse grabbing available)
Electromagnet Working Voltage	48VDC
Electromagnet Size	150(W)×550(L)×200(H)mm × 2 sets
Formation Control Mode	Full electrical automatic control, no manual mechanical adjustment
Steel Splitting Control	Servo automatic positioning & toothed baffle automatic intercepting
Conveying Chain Model	24A industrial heavy-duty chain
Conveying Speed	0.1~1.2m/s (variable frequency adjustable)
Output Roller Conveyor Speed	0.5~1.5m/s
Main Drive Motor Power	5.5KW / 3KW (matched separately)
Control System	Siemens PLC + HMI touch screen operation
Working Mode	24h continuous automatic operation
Warranty Period	1-year full machine warranty

Product Applications

1.Section Steel Rolling Mill Industry

Special automatic palletizing equipment for angle steel and channel steel production lines, matching various medium and small short-process steel rolling projects.

2.Steel Finishing & Packaging Workshop

Replace manual stacking, realize standardized bundling and finished product storage, improve workshop automation level.

3.Overseas Metallurgical Projects

Suitable for steel plant upgrading and new construction projects in Southeast Asia, Africa, Central Asia and other regions, with low investment, high efficiency and stable operation.
