Second-hand 750mm Steel Strip Rolling Mill

Product Introduction

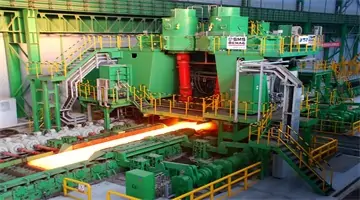

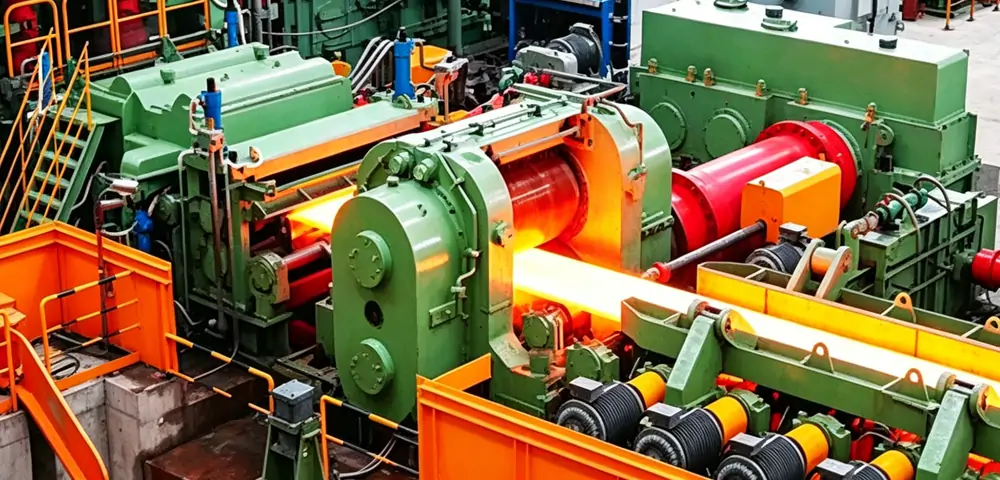

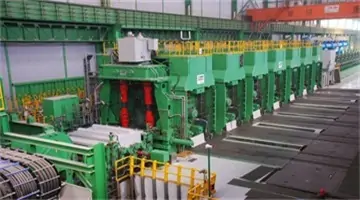

This second-hand 750mm hot strip continuous rolling line is a mature, high-efficiency medium-width strip rolling equipment for carbon steel coil production. The whole line adopts advanced reversible rough rolling + 8-stand continuous finishing rolling configuration, equipped with industry-standard AWC width automatic control and HAGC hydraulic thickness automatic control system.

The complete line has been fully inspected, refurbished, tested and debugged. All core mechanical and electrical systems operate stably, reaching standard production capacity and precision. It is an ideal cost-effective solution for small and medium-sized steel enterprises to invest in hot-rolled strip projects, featuring low investment, quick return, stable performance and wide material adaptability.

Features

•Cost-Effective & Fast Return

Refurbished second-hand complete line, only 60%–70% cost of new equipment. No long manufacturing cycle, ready for installation and production, greatly reducing customer investment pressure and construction cycle.

•Full Refurbishment & Stable Performance

Complete disassembly, inspection, replacement of worn parts, system calibration and full-load test running. Mechanical structure, hydraulic system, electrical control system all restore factory-standard operating performance, low failure rate and stable continuous operation.

•High Precision Automatic Control System

Equipped with professional AWC Automatic Width Control and HAGC Hydraulic Automatic Gauge Control system. Real-time closed-loop adjustment of strip width and thickness ensures finished product size precision and uniform quality, meeting international market delivery standards.

•Large Capacity & High Production Efficiency

Designed annual output up to 800,000 tons, supporting long-term continuous industrial production. Equipped with flying shear, laminar cooling and underground coiler, realizing fully automated one-stop rolling, cooling and coiling.

•Wide Adaptability & Complete Specifications

Compatible with multiple conventional carbon steel materials, covering common medium-width strip thickness and width specifications. Suitable for various downstream processing and sales scenarios with strong market adaptability.

•Complete Supporting Equipment & Turnkey Service

Complete set of original matching equipment including heating furnace, roughing mill, finishing mill, cooling system and coiler. Provide overseas installation, commissioning, technical training and after-sales maintenance one-stop service.

•Energy-Saving & Mature Process

Adopts regenerative heating furnace and optimized rolling process, low comprehensive energy consumption. Mature and stable hot continuous rolling technology, effectively reducing production and operation costs for customers.

Product Parameters

Parameter Item	Technical Specification
Designed Annual Capacity	800,000 Tons/Year
Raw Material Type	Hot-charged continuous casting slab
Slab Specification	450-543X180X6900mm / 563-573X180X7100mm
Finished Strip Thickness	1.4mm ~ 8.0mm
Finished Strip Width	470mm ~ 590mm
Max Single Coil Weight	5.5 Tons
Applicable Steel Grade	Q195, Q195L, Q235 and other carbon structural steels
Total Mechanical Equipment Weight	Approx. 2900 Tons
Total Installed Electrical Capacity	37800 kW

Working Principle & Production Process

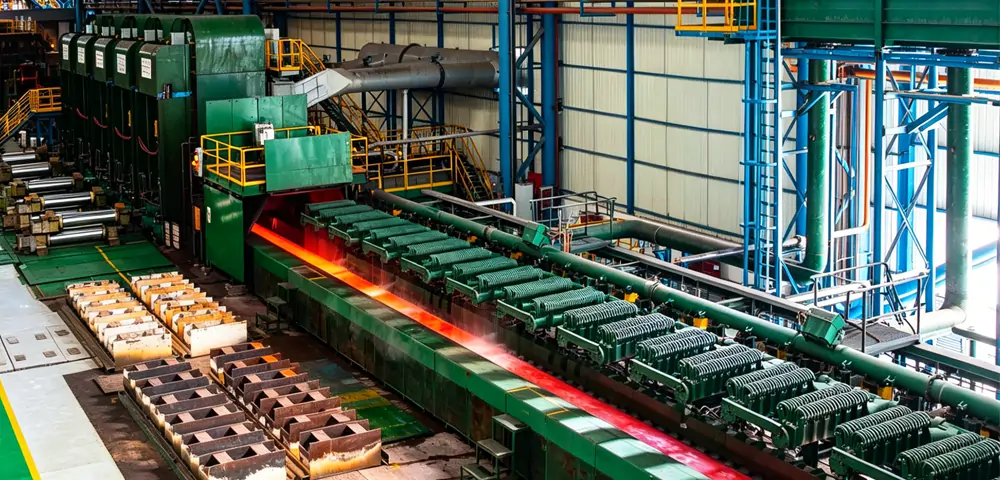

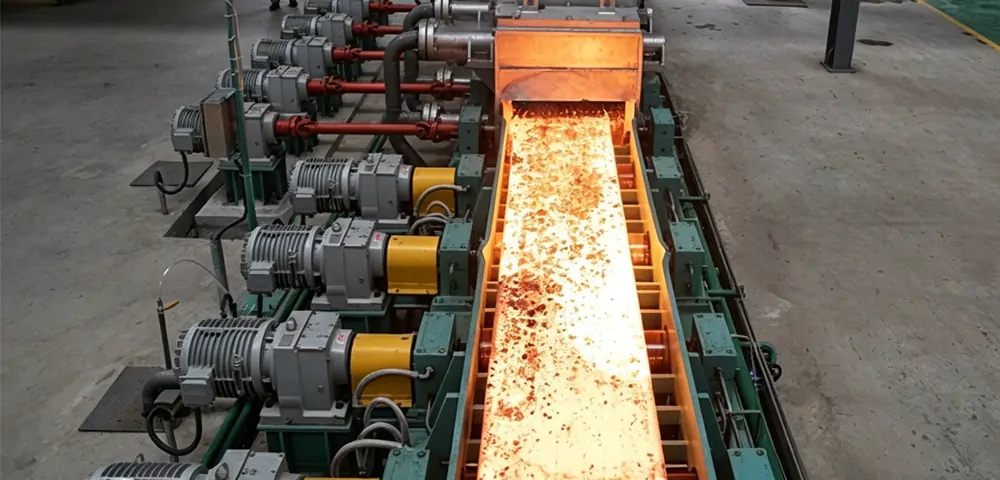

Process Flow: Qualified continuous casting slab hot charging → Regenerative heating furnace uniform heating → Reversing rough rolling + edging width correction → Flying shear head and tail cutting → 8-stand continuous finishing rolling (micro-tension rolling + hydraulic thickness control) → Laminar rapid cooling → Underground hydraulic coiling → Conveyor chain transportation → Finished steel coil output

The line adopts advanced hot continuous rolling technology. The steel slab is continuously rolled at high temperature through multiple stands, realizing high-efficiency and continuous forming of medium-width hot-rolled strips, with stable process and uniform product performance.

Product Applications

1.Steel Production Industry

Specialized in mass production of medium-width hot-rolled carbon steel coils, supplying raw materials for downstream processing enterprises.

2.Downstream Deep Processing

Finished hot-rolled strips can be used for cold rolling, galvanizing, color coating, pipe making, stamping and other processing industries.

3.Construction & Manufacturing

Widely used in building steel structures, hardware accessories, mechanical equipment shells, container plates and other fields.

4.Regional Project Adaptation

Suitable for medium and small steel rolling renovation and new construction projects in Southeast Asia, Africa, the Middle East and other regions, with low investment and high production return.
